Post type pool hoist with rotating and lifting seat carriages

In the last 20 years Wymo has designed many types of lifting devices for the disabled as well as those with minor mobility problems. We use a method in which a winch (on the top of a post) lifts and lowers a seat carriage and the seat carriage is then rotated over the water and back again.

We have developed an excellent self-operated system for the Pool Access Hoist as well.

Wymo Lifting Aids has a full range post type hoists for inground pools, inground spas, above ground pools as well as swim spas.

The building code of Australia requires a pool hoist within 136kg safe working load capacity and 210kg static load capacity. The pool hoist carriage is slung from the winch unit of the hoist which is on top of the post. The Pool Access Hoist is compliant to the BCA requirements. (download certification pdf)

The Wymo Range of Post Type Hoists:

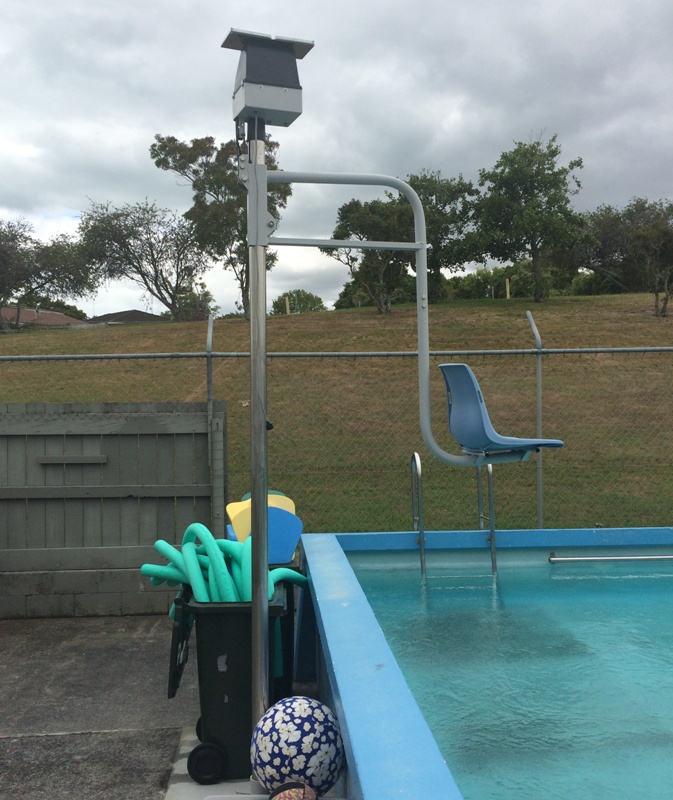

Standard Pool Access Hoist

The Standard Pool Access Hoist is a low cost option for access to a pool, it is the perfect choice for private customers on a strict budget and it is the perfect solution for compliance to the Building Code Of Australia (BCA). This hoist has a safe working load of 140Kg and a static load of 210Kg which makes it fully compliant to the code.

The pool hoist carriage is slung from the winch unit of the hoist which is on top of the post. The standard Pool Access Hoist is compliant to the BCA requirements (download certification pdf)


Accord Pool Hoist.jpg

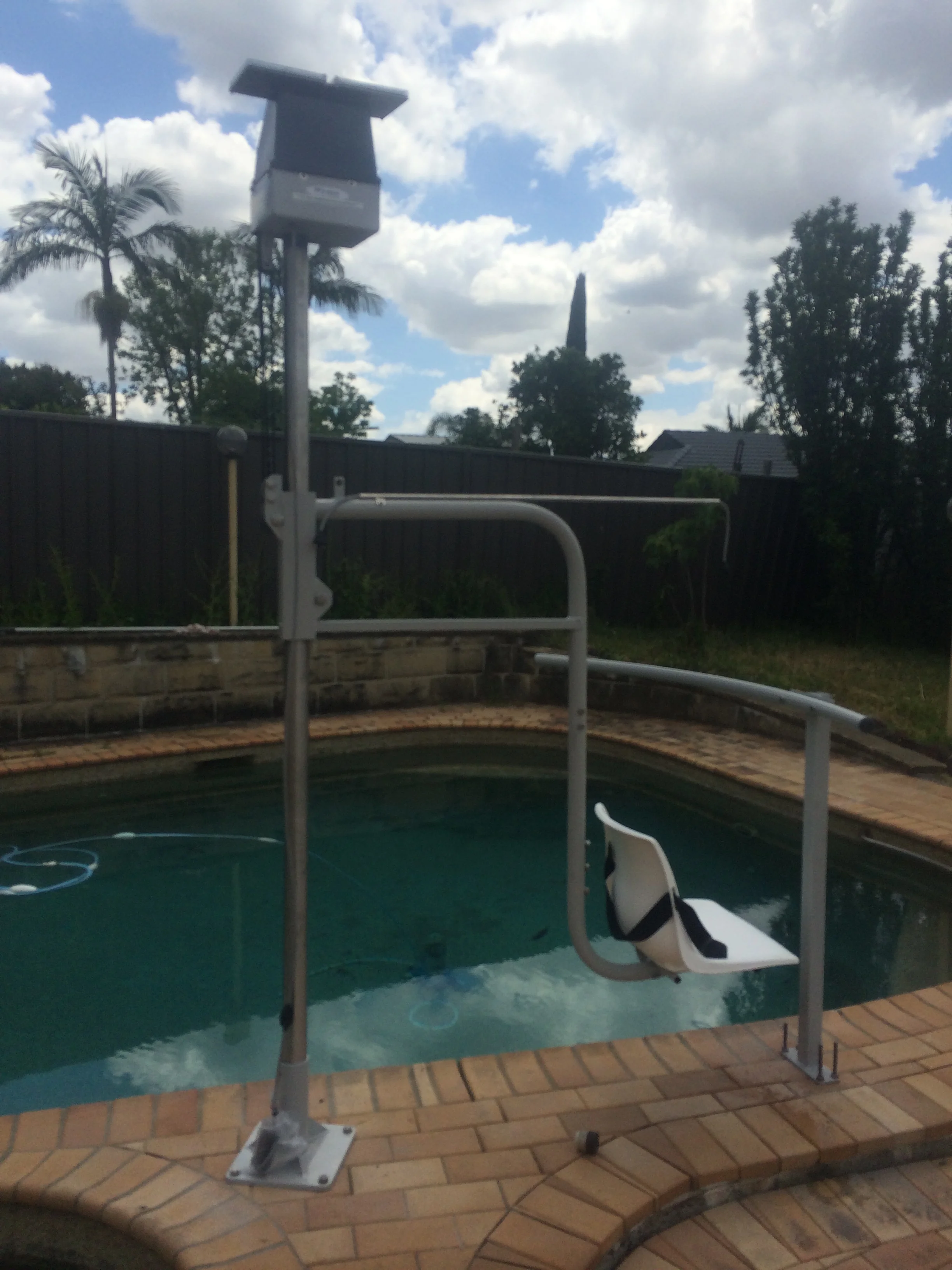

Classic Pool Access Hoist

Also Compliant to BCA, the Classic Pool Access Hoist is the next up the range in Pool Access Hoists; it comes standard with solar charging and seat stabilization it also has provisions for future upgrades. 140kg SWL, 210kg Static Load.

The pool hoist carriage is slung from the winch unit of the hoist which is on top of the post. The Classic Pool Access Hoist is compliant to the BCA requirements (download certification pdf)



Accord Pool Access Hoist

As with the above two hoist this hoist has the relevant structural standards and it comes with an inertia real fail safe and manual override as well as other helpful features such as fold away armrests. (140kg swl)

The pool hoist carriage is slung from the winch unit of the hoist which is on top of the post. The Accord Pool Access Hoist is compliant to the BCA requirements (download certification pdf)


Long Reach Pool Hoist

The Longreach pool access hoist is designed for maximum clearance for the seat to enter the pool. The hoist has a reach of 1050mm and can easily clear a wetdeck  as well as other wide obstructions to enable access to the pool. This hoist has a very substantial frame and is certified to 136kg swl.

The pool hoist carriage is slung from the winch unit of the hoist which is on top of the post.

(download certification pdf)



Inground Access Spa Hoist

The Inground Spa Hoist is the Pool Access Hoist which is used to access a spa instead of or as well as an inground pool, this hoist is ostensibly the Standard, Classic or Accord Pool Access Hoist. 140kg SWL 210kg Static Load.

The pool hoist carriage is slung from the winch unit of the hoist which is on top of the post. The Inground Spa Access Hoist is compliant to the BCA requirements (download certification pdf)



Spa / Swim Spa Access Hoist:

The Spa Access Hoist is a great solution to access for an above ground spa, it can be used for a traditional spa or a swim spa which enables the swimmer gets well needed hydrotherapy and exercise. This hoist is a simple variation on the Pool Access hoist.

The Spa Access carriage is slung from the winch unit of the hoist which is on top of the post

(download certification pdf)



Above-Ground Pool Access Hoist

This Hoist is the best solution for above ground pool Access on the Australian Market, the hoist is based on the standard hoist but with a 3 metre post and a more substancial baseplate, Wymo has exported many of these hoists and they are very simple and effective to install and operate. 120Kg SWL 180Kg static load.

The Above-Ground Pool Access carriage is slung from the winch unit of the hoist which is on top of the post.

(download certification pdf)



Self-Operated Pool Access Hoist

This Hoist was a Eureka moment when it was first developed by Wymo, it uses a very basic radius bar to enable the swimmer to position themselves over the pool and back over the concourse of the pool. This hoist gives the swimmer the freedom to swim anytime they wish. 140kg SWL 210kg Static Load

The pool hoist carriage is slung from the winch unit of the hoist which is on top of the post. The Self-Operated Pool Access Hoist is compliant to the BCA requirements (download certification pdf)



Bath Access Hoist

The Bath Access Hoist is custom made depending on the layout of the bathroom and the orientation of the bath, installation on concrete is preferred.



Stretcher Hoist

The Stretcher Hoist is a Pool Access Hoist with a stretcher attachment instead of a seat attachment; the hoist can be supplied with both. This is a very important hoist for children with severe disabilities or a person who cannot use a seat and choose not to use the Universal Sling Hoist. 110Kg SWL, 165Kg Static load.
